Master Control Panel working on single phase AC 220/250 volts with LCD display with 2 zone (location) siren controller through LAN network

---

KHERAJ make LAN based 1 zone (location) Siren Control Interface Panel or 2 zone (location) Master Siren Control Panel, both logically controlled with 20K Bytes reprogrammable flash memory, 256x8 bit internal Ram, Dual Data Pointer, Three level program memory lock etc. RJ45 interface with auto sensing 10/100 base T Speed, TTL interface with RX, TX, GND, RTS, CTS up to 115 KBPS. LED indicators for link @100 MBPS and status. TELNET and Network protocol: TCP, IP, ICMP, ARP, UDP, HTTP. All the serial and ethernet parameters can be configured using TELNET, Hyper Terminal or through a PC with master and slave modes.

Master Control Panel working on single phase AC 220/250 volts with LCD display with 2 zone (location) siren controller through LAN network

---

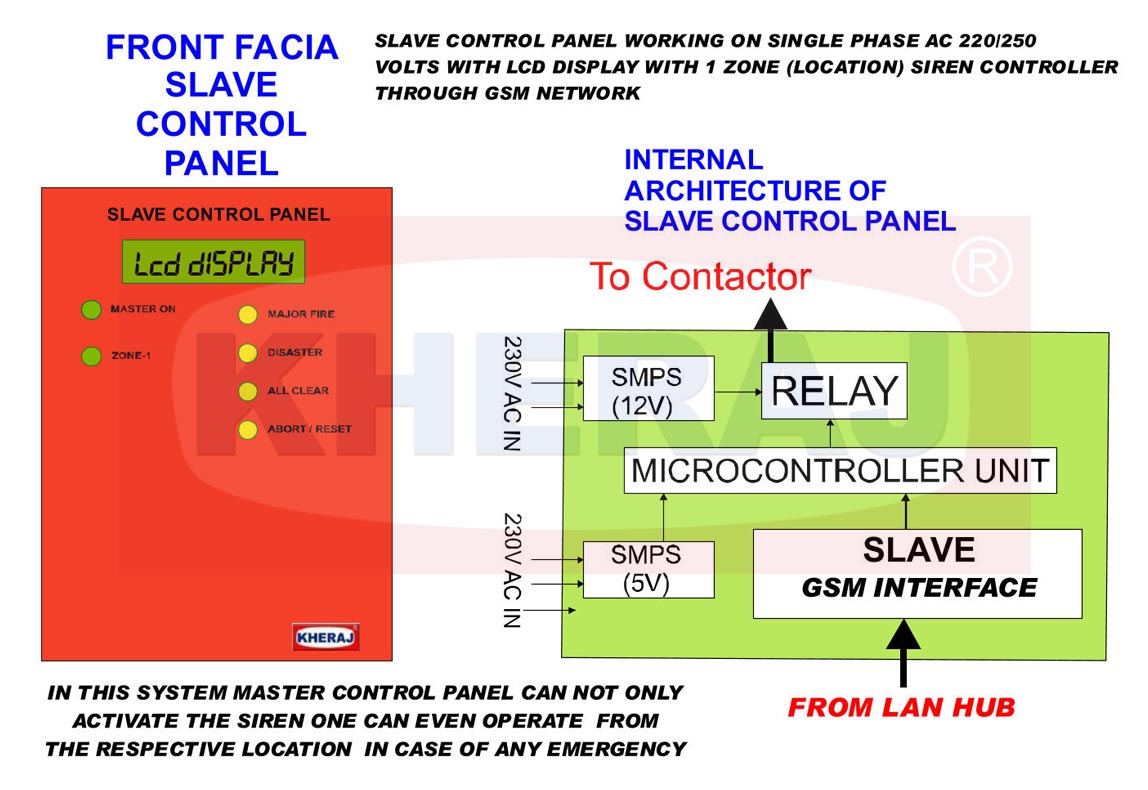

KHERAJ make, logically controlled with 20k bytes reprogammable flash memory, 256 x 8 bit internal RAM, dual data pointer, three level program memory lock. GSM dual sim interface industrial grade, dual band GSM/GPRS 900/1800 MHZ, wired antenna, or through a PC with master and slave modes. Addressable display features for operation & fault indications. Panel consists of 6 individual zone switches along with 4 (four) emergency situation activation switches. Each emergency situation is controlled by different time sequences for differentiation and recognition in case of emergency situation. Panel works on single phase ac 220/250 volts 50 cycles GSM based multi zone (location) master siren control panel or 1 zone (location) slave siren control panel based on specifications and is suitable to drive one motorised siren in un-interrupted power supply.

Master Control Panel working on single phase AC 220/250 volts with LCD display with 2 zone (location) siren controller through LAN network

---

KHERAJ make LAN based 1 zone (location) Siren Control Interface Panel or 2 zone (location) Master Siren Control Panel, both logically controlled with 20K Bytes reprogrammable flash memory, 256x8 bit internal Ram, Dual Data Pointer, Three level program memory lock etc. RJ45 interface with auto sensing 10/100 base T Speed, TTL interface with RX, TX, GND, RTS, CTS up to 115 KBPS. LED indicators for link @100 MBPS and status. TELNET and Network protocol: TCP, IP, ICMP, ARP, UDP, HTTP. All the serial and ethernet parameters can be configured using TELNET, Hyper Terminal or through a PC with master and slave modes.

Master Control Panel working on single phase AC 220/250 volts with LCD display with 2 or 1 zone (location) siren controller through Telephone network

---

KHERAJ make telephone based 1 zone (location) siren control interface panel, logically controlled with 20k bytes reprogammable flash memory, 256 x 8 bit internal RAM, dual data pointer, three level program memory lock. Connection through telephone EPABX network preferably hotlines, or through a PC with master and slave modes. Addressable display features for operation & fault indications. Panel works on single phase ac 220/250 volts 50 cycles. KHERAJ make telephone network based 2 zone (location) master siren control panel, logically controlled with 20k bytes reprogammable flash memory, 256 x 8 bitinternal RAM, dual data pointer, three level program memory lock. RJ45 interface with auto sensing through telephone network hot lines (48 volts) dc, or through a PC with master and slave modes. addressable display features for operation & fault indications. Panel consists of 6 individual zone switches along with 4 (four) emergency situation a ctivation switches. Each emergency situation is controlled by different time sequences for differentiation and recognition in case of emergency situation. Panel works on single phase ac 220/250 volts 50 cycles.

Master Control Panel working on single phase AC 220/250 volts with LCD display with 6 zone (location) Siren Controller through Telephone network

---
